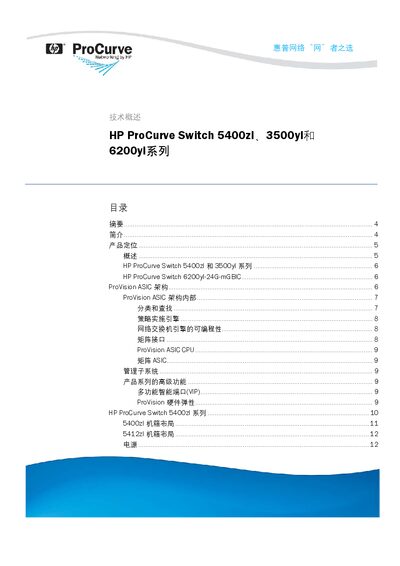

Technical overview of HP ProCurve 5400zl, 3500yl and 6200yl series switches with architecture, features and specifications.
This document provides a detailed technical overview of the HP ProCurve 5400zl, 3500yl and 6200yl series switches. It describes the product positioning, key features, ProVision ASIC architecture, and advanced capabilities such as QoS, security, and PoE support.
The guide includes specifications for chassis layouts, power options, module configurations, LED status indicators, and part numbers for field‑replaceable units. It also outlines management subsystem details and compliance with various network protocols (IPv6, OSPF, VRRP, etc.). This manual is written in Chinese.
| 背板速度 (5406zl) | 345.6 Gbps |
|---|---|
| 背板速度 (5412zl) | 691.2 Gbps |
| 内存容量 | 256 MB DDR‑1 DIMM, max 1 GB |
| PoE 功率 (15.4 W) | 8 端口 |
Each PoE port can deliver up to 15.4 W of power.
All three series use the ProVision ASIC architecture.
