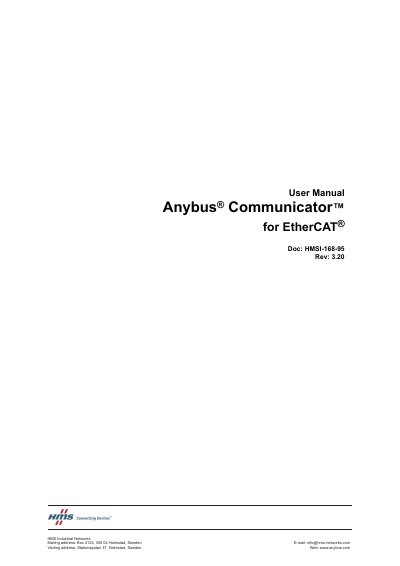

The HMS Industrial Networks Anybus Communicator for EtherCAT User Manual provides installation, configuration, and operation instructions for the gateway…
This manual describes the Anybus Communicator for EtherCAT, a gateway that connects serial field devices to an EtherCAT network. It covers hardware installation, wiring, power and DIN‑rail mounting, as well as the PC‑connector used for configuration and monitoring.
The guide also explains the Anybus Configuration Manager software, fieldbus and sub‑network settings, transaction creation, troubleshooting steps, and regulatory compliance. Detailed specifications such as temperature limits, wiring requirements, and EMC standards are included.
| Maximum Ambient Temperature | 55 °C |
|---|---|
| Terminal tightening torque | 5–7 lb‑in (0.5–0.8 Nm) |
| Recommended wire type | 60/75 °C or 75 °C copper (Cu) wire only |
| Pollution degree and working voltage | Pollution Degree 2, 250 V RMS or 250 VDC |
| EMC compliance standards | EN 50082‑2, EN 55011 (Class A) |
| Maximum number of nodes | 31 nodes |
It can address up to 31 nodes on the sub‑network.
The terminal tightening torque must be set to 5–7 lb‑in (0.5–0.8 Nm).
It supports RS‑232, RS‑422, and RS‑485 interfaces.
This manual explains 5 error codes. Open a code for its meaning, causes and what to do:
