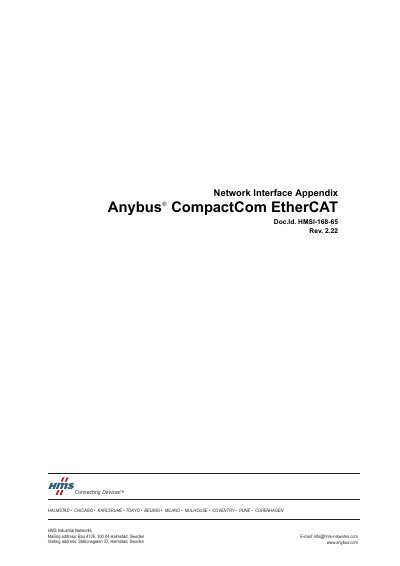

User manual for the Anybus CompactCom 30 EtherCAT network interface module, covering features, configuration, and technical specifications.
The Anybus CompactCom 30 EtherCAT is a network interface module that enables EtherCAT connectivity for devices. It supports CANopen over EtherCAT, RJ45 connectors, and up to 16 383 application data objects, providing fast cyclic I/O and extensive diagnostic features.
The manual describes the module’s hardware and software architecture, object dictionary, timing and performance parameters, and guidelines for product re‑identification, factory reset, and conformance testing. It also includes technical specifications such as power requirements, protective‑earth connections, and EMC compliance.
| Supply Voltage | 3.3 V (regulated) |
|---|---|
| Power Consumption | up to 370 mA |
| Maximum ADIs | 16 383 |
| Connector Type | RJ45 |
| Network System Read Process Data Delay (16 ADIs) | 1.2 – 2.4 ms |
The module can access up to 16 383 ADIs on the network.
The delay ranges from 1.2 ms to 2.4 ms.
The module uses an RJ45 connector.
