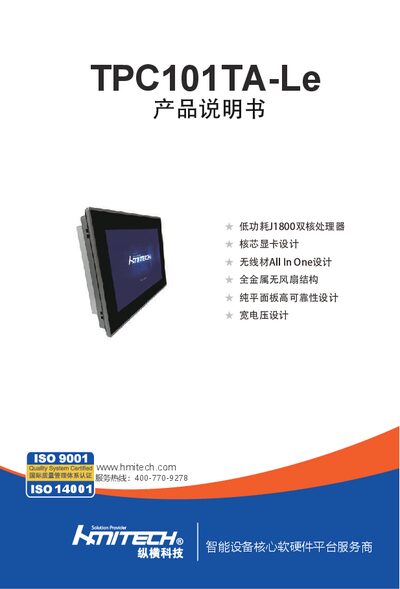

The HMI Tech TPC101TA-Le user manual provides specifications, port details, operating temperature ranges, and warranty information for the 10.1" industrial…
The TPC101TA-Le is a 10.1" industrial touch panel computer featuring a low‑power dual‑core CPU, up to 8 GB RAM, and a 1280 × 800 TFT LCD with 350 cd/m² brightness. It supports Windows 7, Windows 10, Linux and offers 10‑point touch, multiple USB, LAN and serial interfaces, and a rugged metal enclosure.
The manual lists the hardware specifications, connector pin‑outs, environmental limits, warranty terms and contact information for HMI Tech. It also includes power requirements, dimensions, and storage options, helping users install, operate, and service the device.
| Display | 10.1" TFT LCD, 1280 × 800 resolution |
|---|---|
| CPU | Low‑power dual‑core, 2.41 GHz (max 2.58 GHz) |
| Brightness | 350 cd/m² |
| Memory | Up to 8 GB RAM |
| Storage | 32 GB fixed, up to 512 GB expandable |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
| Dimensions (body) | 276 × 196 × 52 mm |
| Ports | 2× RS‑232, 1× RS‑232/485, 3× USB 2.0, 1× USB 3.0, 2× Gigabit LAN |
| Power Input | DC 9‑80 W |
It operates from 0 °C up to 50 °C.
The device provides three USB 2.0 ports and one USB 3.0 port.
The unit comes with a three‑year warranty, with the first year free of charge.
