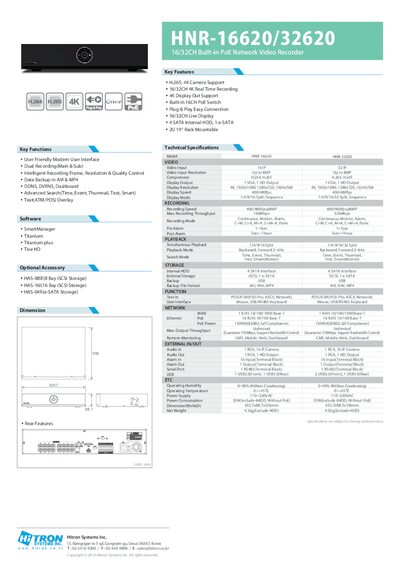

Specification sheet for Hitron HNR-16620 and HNR-32620 4K video recorders, detailing features, technical specs, and connectivity.
The Hitron HNR-16620 and HNR-32620 are 4K video recorders with built‑in PoE switches, supporting up to 32 channels of real‑time recording and multiple display modes. Key functions include a modern user interface, dual recording, intelligent frame control, and remote monitoring via web or mobile dashboards.
Technical specifications cover video compression (H.264, H.265), up to 8 MP camera input, 4 SATA and 1 e‑SATA storage interfaces, power consumption of 35 W, dimensions of 435.7 × 88.7 × 356 mm, and operation from 0 °C to +45 °C. The units are rack‑mountable (2U) and include extensive networking ports for PoE, USB, and RS‑485.
| Recording Channels | 16/32 |
|---|---|
| Maximum Camera Resolution | Up to 8 MP |
| PoE Switch Channels | 16 |
| Power Supply | 110~220 VAC, 35 W |
| Dimensions (W×H×D) | 435.7 × 88.7 × 356 mm |
The recorder supports H.264 and H.265 compression.
It provides four SATA iSCSI interfaces and one e‑SATA interface.
The unit consumes 35 W (including four HDDs, without PoE).
