This manual details the professional intelligent functions, specifications, interfaces, and network protocols for the Hikvision DS-2CD7A47FWD-ITYWL 4MP AI…

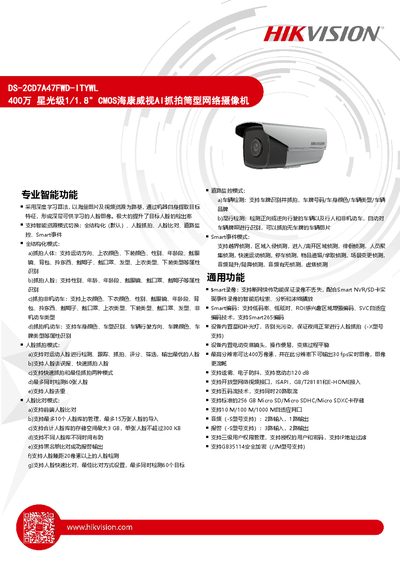

The document describes the Hikvision DS-2CD7A47FWD-ITYWL as a 4-megapixel starlight-level CMOS AI capture cylindrical network camera. It highlights professional intelligent features powered by deep learning algorithms, including human body detection with attributes like clothing color and gender, face recognition with attribute identification (age, glasses, mask), vehicle license plate recognition, and various Smart Event detections such as intrusion and loitering.
The manual also covers general functions like Smart recording for offline continuity, Smart encoding technologies (H.265/H.264/Smart265), and support for multiple video streams. Technical specifications provided include sensor details, lens focal lengths, network protocols, interface types, power requirements (DC 12V or PoE), and environmental operating conditions. This manual is written in Chinese.
| Sensor Type | 1/1.8" Progressive Scan CMOS |
|---|---|
| Max Resolution | 2688×1520 pixels |
| Wide Dynamic Range | 120dB |
| Max Aperture (2.8-12mm) | F1.2 |
| Network Interface | 1x RJ45 10M/100M/1000M Adaptive Ethernet Port |
| Storage Support (MicroSD) | Up to 256GB |
| Operating Temperature | -30℃~60℃ |
The maximum image size supported is 2688×1520 pixels.
Yes, it supports PoE (802.3at) with a voltage range of 42.5V~57V.
The device supports standard MicroSD cards with a maximum capacity of 256GB.
Yes, it supports face capture and comparison with a library of up to 10 databases containing 150,000 faces each.
