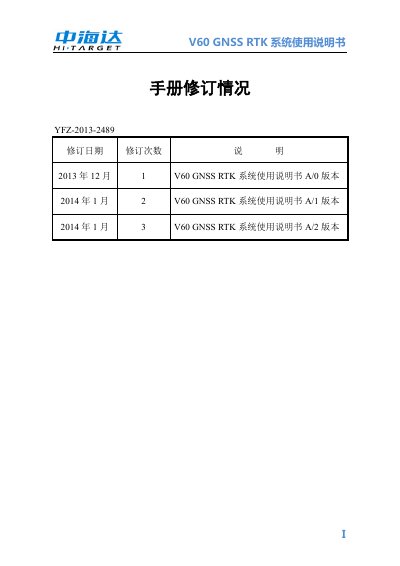

User manual for the Hi-Target V60 GNSS RTK system, covering installation, settings, operation, and technical specifications for surveying applications.
This manual provides comprehensive instructions for the Hi-Target V60, a high-end surveying GNSS receiver. It covers the introduction, product features, and precautions for use. The device supports multi-system navigation (BDS, GPS, GLONASS) and features a built-in UHF radio and GPRS communication capabilities. This manual is written in Chinese.
| Memory | 1GB built-in, supports SD card up to 32GB |
|---|---|
| Display | 128x64 resolution, 1.54 inch LCD |
| Battery | 5000 mAh built-in lithium battery |
| Weight | 1.25kg (without battery) |
| Dimensions | Diameter 182mm x Height 98mm |
| Radio Power | 1W, 2W, or 5W adjustable |
| Data Rate | Default 9.6Kbps, max 19.2Kbps |
The V60 supports SD cards with a maximum capacity of 32GB.
The indicator lights show status for Power, Signal (GSM), Data, and Satellite in different modes like Work Mode and Data Link Mode.
Yes, the built-in transceiver radio allows the base station and mobile station to be completely interchangeable.
