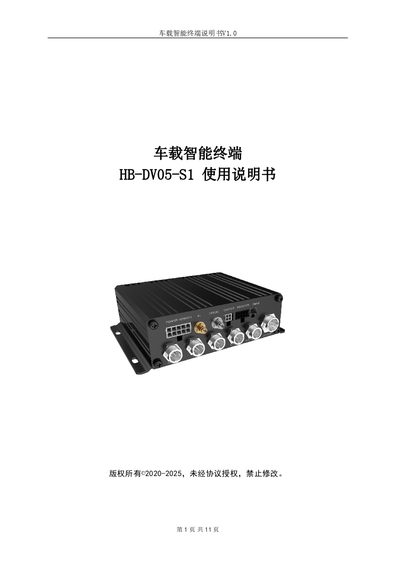

User manual for the HB HB-DV05-S1 vehicle intelligent terminal, covering installation, wiring, and configuration for video monitoring and GPS tracking.
The HB-DV05-S1 is a split-body vehicle intelligent terminal designed for real-time monitoring of vehicle status, video, and location. It integrates features such as ADAS/DSM, two-way intercom, and remote fuel/power cutoff, suitable for small trucks, ride-hailing vehicles, and engineering transport vehicles. The device supports 4-channel video input (including AHD and IPC) and utilizes H.264 compression over 4G networks. This manual is written in Chinese.
| Operating System | Linux |
|---|---|
| Video Input | 4 channels (2x1080P/720P, 1xADAS, 1xDSM) |
| Network | 4G |
| Power Input | DC +9V to +36V |
| Operating Temperature | -30℃ to +70℃ |
| Dimensions | 165*108*47.5mm |
The device runs on a Linux operating system.
The device accepts a DC power input ranging from +9V to +36V.
It supports 4 channels, including 2 channels of 1080P/720P, 1 ADAS, and 1 DSM.
