7511MR2D red LED specifications, including external dimensions, maximum working voltage, maximum working current, maximum power consumption, working temperature range, storage temperature range, etc.

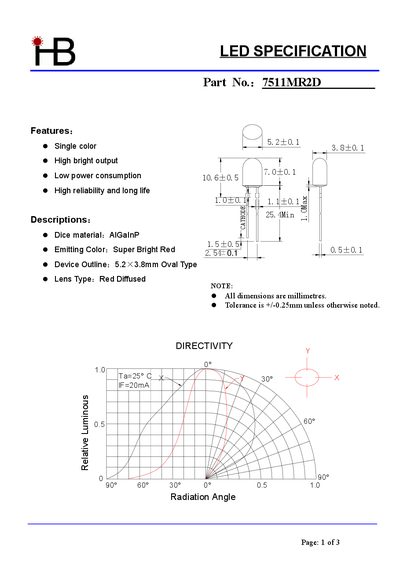

This document provides a specification sheet for the Part No. 7511MR2D, an oval-type LED with a red diffused lens. Key features include high brightness output, low power consumption, and high reliability with a long life.
The datasheet lists absolute maximum ratings such as a forward current of 30 mA and operating temperatures from -20°C to +85°C. It also details electrical characteristics like a typical forward voltage of 2.0V at 20mA and a dominant wavelength of 625nm.
| Emitting Color | Super Bright Red |
|---|---|
| Device Outline | 5.2 3.8mm Oval Type |
| Lens Type | Red Diffused |
| Forward Current (Max) | 30 mA |
| Operating Temperature | -20 +85 c |
| Forward Voltage (Typ) | 2.0 V |
| Dominant Wavelength | 625 nm |
