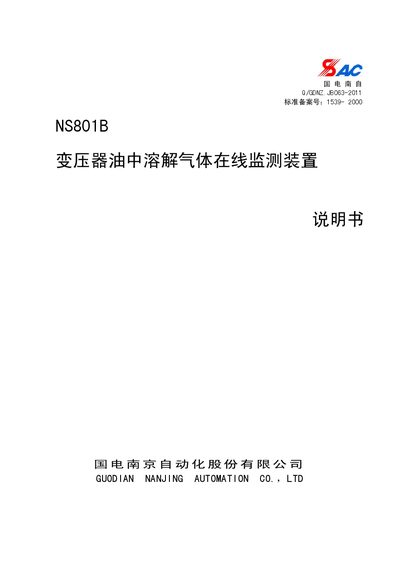

The NS801B manual describes installation, operation, technical specs and software for the transformer oil dissolved‑gas online monitoring device.
The NS801B is an online monitoring device for dissolved gases in transformer oil, designed for oil‑immersed transformers, reactors, capacitors, inductors and oil‑immersed bushings. It detects up to seven gases and optional moisture, provides real‑time analysis, alarm functions and remote data transmission.
The manual includes a technical description, installation procedures, software usage, alarm configuration, communication settings and ordering information, helping users set up and maintain the system safely and efficiently. This manual is written in Chinese.
| Power supply | AC 220V±15%, 50Hz (10A+) |
|---|---|
| Maximum ambient temperature | +65 °C |
| Minimum ambient temperature | -40 °C |
| Cabinet dimensions | 800 mm × 600 mm × 1500 mm (L × W × H) |
| Cabinet weight | 250 kg |
| Ingress protection rating | IP56 or higher |
| Detection gases | H₂, CH₄, C₂H₂, C₂H₄, C₂H₆, CO, CO₂ |
| H₂ minimum detection limit | 2 ppm |
| CO minimum detection limit | 25 ppm |
| CH₄ minimum detection limit | 0.5 ppm |
| C₂H₆ minimum detection limit | 0.5 ppm |
| C₂H₄ minimum detection limit | 0.5 ppm |
| C₂H₂ minimum detection limit | 0.1 ppm |
| CO₂ minimum detection limit | 25 ppm |
| Total hydrocarbons minimum detection limit | 1 ppm |
| Moisture (water) minimum detection limit | 0.1 aw |
| Shortest analysis cycle | 1 hour (configurable) |
The NS801B can detect seven gases: hydrogen, methane, acetylene, ethylene, ethane, carbon monoxide and carbon dioxide, with optional moisture detection.
The device can produce a complete set of detection data in as little as one hour, and the interval can be set by the user.
Both concentration and growth‑rate alarm thresholds can be set arbitrarily in the system.
