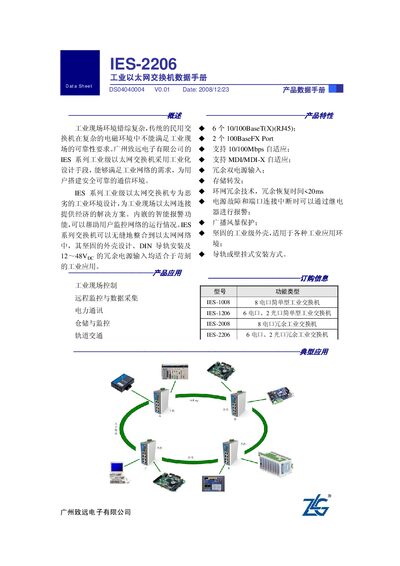

Data sheet for the IES-2206 industrial Ethernet switch with redundant power, 6 RJ45 ports, 2 fiber ports, and ring‑redundancy.
The IES‑2206 is a rugged industrial Ethernet switch designed for harsh environments. It features a metal housing, DIN‑rail or wall‑mount options, and built‑in alarm functions to monitor power and port status.
Key specifications include 6 × 10/100 Base‑T RJ45 ports, 2 × 100Base‑FX fiber ports, redundant 12‑48 V DC power inputs, and ring‑redundancy with recovery under 20 ms. The device operates from –20 °C to 70 °C and consumes less than 5 W. This manual is written in Chinese.
| Transmission rate | 100 Mbps |
|---|---|
| Forwarding speed | 148 810 pps |
| MAC address table size | 1 K entries |
| Power input | 12‑48 V DC redundant |
| Power consumption | < 5 W |
| Operating temperature | -20 °C to 70 °C |
| Dimensions (W × H × L) | 51.3 × 136 × 106 mm |
| Ethernet ports | 6 × RJ45 10/100Base‑T, 2 × 100Base‑FX (SC/ST) |
| Ring redundancy recovery time | < 20 ms |
It accepts a redundant DC input of 12 V to 48 V.
The switch has six RJ45 10/100 Base‑T ports and two 100Base‑FX fiber ports.
The ring‑redundancy self‑healing time is less than 20 ms.
The unit measures 51.3 mm × 136 mm × 106 mm (W × H × L).
