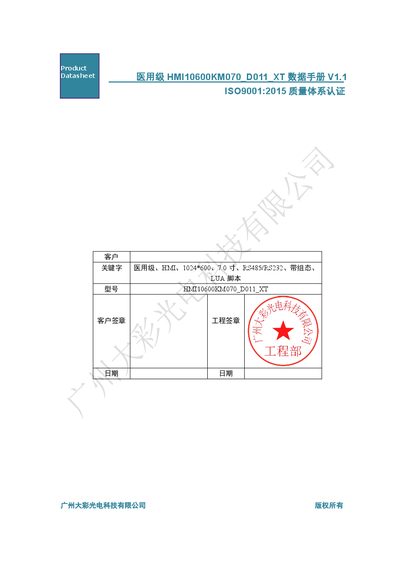

Technical data sheet for the Guangzhou Dacai HMI10600KM070_D011_XT medical‑grade human‑machine interface.
The Guangzhou Dacai HMI10600KM070_D011_XT is a medical‑grade 7.0‑inch resistive touch HMI with a 1024×600 resolution. It runs without an operating system and supports a wide range of industrial communication protocols, making it suitable for diverse embedded applications.
The datasheet details hardware configuration, installation diagrams, communication options (RS485/RS232), LUA scripting capabilities, reliability test results, and available customization services. It also provides specifications for power consumption, temperature range, storage, and display characteristics. This manual is written in Chinese.
| Resolution | 1024×600 |
|---|---|
| Operating voltage | 5‑36 V |
| Power consumption (backlight off) | 0.6 W |
| Power consumption (backlight max) | 2.4 W |
| Communication interfaces | RS485 or RS232 |
| Storage capacity | 128 Mbit |
| Working temperature range | -20 °C to +70 °C |
| Storage temperature range | -30 °C to +80 °C |
It supports MODBUS RTU, FX2N, FX3U, DELTA (DVP), XINJIE (XC/XD), FATEK (FB), HAIWELL (N/S), SAMKOON, EMERSON, DCBUS, XGUS, and SIEMENS (PPI) among others.
The device can be pre‑loaded with up to 15 different languages.
The HMI operates from 5 V up to 36 V.
