Featured 广州大彩光电科技有限公司 manuals
Guangzhou Dacai Optoelectronics DC19108X215_1VX1_0C,4G HMI Touch Screen Datasheet
The DC19108X215_1VX1_0C,4G is a 21.5‑inch capacitive HMI touch screen running a Sigma core processor with Linux OS. It supports a range of communication options including RS232/TTL, USB2.0, optional 4G (Air724U) and Wi‑Fi (BL‑R8189FS6WIFI) modules, and provides built‑in audio and video playback capabilities.
Key specifications include a 1920×1080 IPS LCD with 250 cd/m² brightness, 1000:1 contrast, 89° viewing angles, 12 V supply, 3 W sleep power, 1 Gbit Flash storage, and operating temperature from –20 °C to +70 °C. The device also offers extensive customization through LUA scripting, protocol configuration, and a dedicated VisualTFT development suite. This manual is written in Chinese.
Covers: Hardware Introduction · Installation Diagram · Product Specifications · Reliability Tests · Product Dimensions · Model Definition

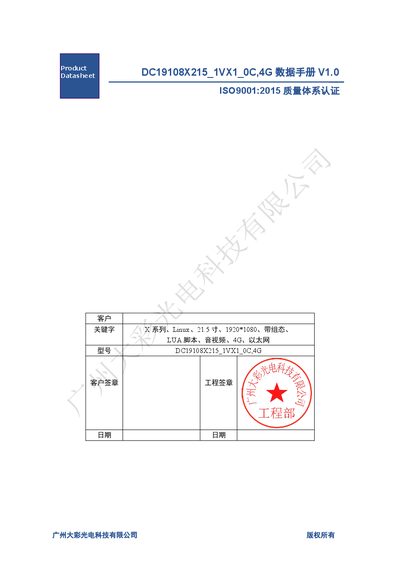

Guangzhou Dacai Optoelectronics DC19108X215_1VX1_0C,4G HMI Touch Screen Data Sheet
This document describes the DC19108X215_1VX1_0C,4G HMI touch screen, a 21.5‑inch capacitive display running Linux on a Sigma core processor. It includes hardware layout, required tools, and detailed product specifications.
Key sections cover installation diagrams, communication interfaces (RS232/TTL, 4G, Wi‑Fi), power consumption, environmental limits, and development resources such as the VisualTFT software and LUA scripting support. This manual is written in Chinese.
Covers: Hardware Introduction · Installation Diagram · Product Specifications · Reliability Testing · Product Dimensions · Model Definition
Guangzhou Dacai HMI10600KM070_D011_XT Medical HMI Datasheet
The Guangzhou Dacai HMI10600KM070_D011_XT is a medical‑grade 7.0‑inch resistive touch HMI with a 1024×600 resolution. It runs without an operating system and supports a wide range of industrial communication protocols, making it suitable for diverse embedded applications.
The datasheet details hardware configuration, installation diagrams, communication options (RS485/RS232), LUA scripting capabilities, reliability test results, and available customization services. It also provides specifications for power consumption, temperature range, storage, and display characteristics. This manual is written in Chinese.
Covers: Hardware Introduction · Installation Diagram · Protocol and Controls · Product Specifications · Product Dimensions · Pin Definition
Latest 广州大彩光电科技有限公司 manuals
Guangzhou Dacai Optoelectronics DC19108X215_1VX1_0C,4G HMI Touch Screen Datasheet
Datasheet 26 pages · 6.8 MB · ZHThis datasheet details the hardware specs, dimensions, interfaces, power consumption and optional 4G/Wi‑Fi features of the DC19108X215_1VX1_0C,4G HMI touch…
Guangzhou Dacai Optoelectronics DC19108X215_1VX1_0C,4G HMI Touch Screen Data Sheet
Datasheet 26 pages · 6.8 MB · ZHThe datasheet provides specifications, hardware configuration, installation diagram, and reliability test results for the DC19108X215_1VX1_0C,4G HMI touch…
Guangzhou Dacai HMI10600KM070_D011_XT Medical HMI Datasheet
Datasheet 26 pages · 4 MB · ZHTechnical data sheet for the Guangzhou Dacai HMI10600KM070_D011_XT medical‑grade human‑machine interface.
