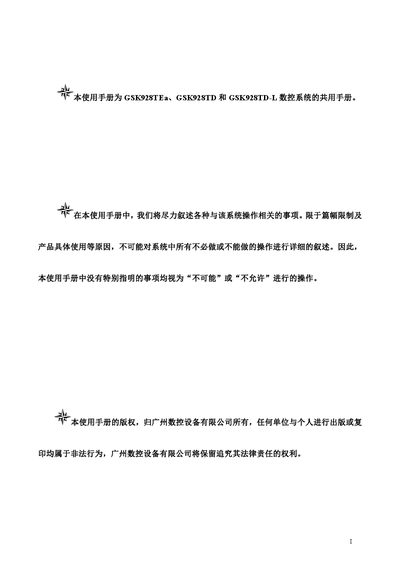

Guangzhou CNC GSK928T Series Lathe CNC System User Manual

About this manual

This manual provides detailed instructions for the GSK928T series lathe CNC system, including programming, operation, and connection procedures. It is intended for qualified personnel who will install, configure, and operate the system safely.

Safety is emphasized throughout, with requirements for proper emergency‑stop wiring, grounding resistance (≤0.1 Ω), and protection against dust, moisture, and corrosive gases. Users must also consult the machine‑tool manufacturer's documentation for complementary safety and usage guidelines. This manual is written in Chinese.

What's inside

• Safety Precautions
• Technical Specifications
• Operation Panel Description
• System Operation
• Programming
• Interface Overview
• Connection Methods
• Installation Guidelines
• Maintenance Information

Frequently asked questions

How should the emergency‑stop button be connected?

The emergency‑stop input uses normally‑closed contacts; if the button is not connected correctly or wired as normally‑open, the system will alarm and will not operate.

What is the required resistance for protective grounding?

The protective‑ground resistance must be less than or equal to 0.1 Ω.

Which documents must be read before operating the system?

Both this user manual and the machine‑tool manufacturer's usage manual must be read in full before installation, programming, or operation.
