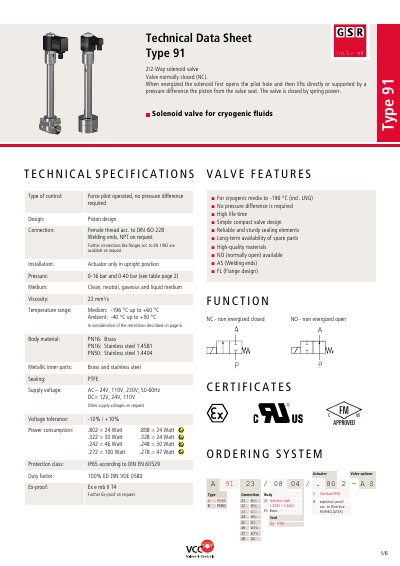

Technical data sheet for the GSR Type 91 solenoid valve, covering specifications for cryogenic and industrial applications including dimensions, materials…
This document provides technical specifications for the GSR Type 91 2/2-Way Solenoid Valve. It details features such as suitability for cryogenic media down to -196 °C, high-quality sealing elements, and a compact design. The valve is available in various connection options including welding ends (AS) and flanges (FL), with body materials ranging from brass to stainless steel grades 1.4581 and 1.4404.
| Temperature range (Medium) | -196 °C up to +60 °C |
|---|---|
| Pressure rating PN16 | 0-16 bar |
| Body material options | Brass, Stainless steel 1.4581 / 1.4404 |
| Sealing material | PTFE |
| Supply voltage AC | 24V, 110V, 230V; 50-60Hz |
| Protection class | IP65 |
Yes, it is designed for cryogenic media down to -196 °C (including LNG).
No, no pressure difference is required for operation.
