The product is a 2/2 way solenoid valve, which is normally closed (NC). When the solenoid is energized, it will open a pilot bore and directly or servo assisted by the pressure differential lift the piston from the main seat. The valve closes by spring power.

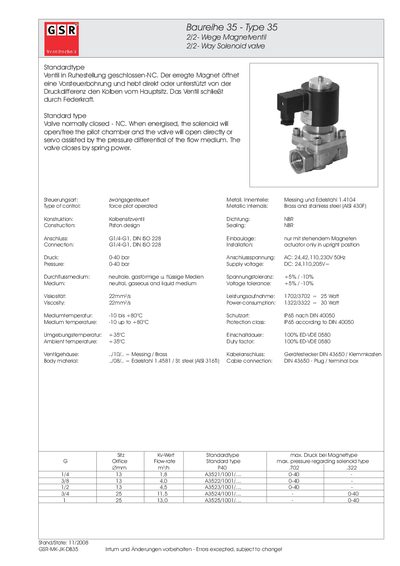

This document provides technical specifications for the GSR Series 35 (Type 35) 2/2-way solenoid valve. The valve is designed as a standard normally closed (NC) unit that operates by spring force when de-energized. It features a piston design and can be configured with various connection sizes, supply voltages, and sealing materials to suit different media requirements. This manual is written in German.
The valve is rated for a maximum pressure of 0-40 bar.
The medium temperature must not exceed +80°C.
The actuator must be installed only in an upright position.
