Grundig SonicMic II USB Dictation Microphone Product Leaflet

The Grundig SonicMic II is a USB dictation microphone with slide switch, integrated sound card, track‑point mouse control and programmable buttons.

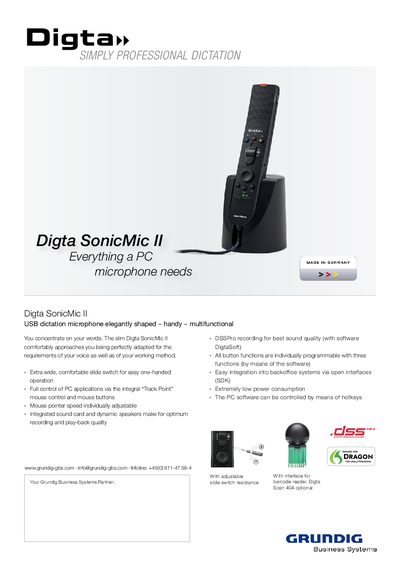

Grundig SonicMic II USB Dictation Microphone Product Leaflet - cover page
Brand
Grundig
Category
Other
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
436 KB
Published
04 October, 2026
Updated
04 October, 2026
MD5 checksum
6B21759F04C94FA160FBCB8FC98B981F

About this manual

The Grundig SonicMic II is a slim USB microphone designed for professional dictation. It features an extra‑wide slide switch for one‑handed operation, integrated sound card with dynamic speaker, and a track‑point mouse control with adjustable pointer speed.

The device offers DSSPro recording, programmable function keys, low power consumption and optional accessories such as a barcode reader. Technical specifications include a 200 Hz‑12.5 kHz frequency response, USB 2.0 HID interface, and a compact plastic housing.

What's inside

  • Features
  • Technical Data
  • Operating Controls
  • Connection to PC
  • Optional Accessories
  • Scope of Delivery
  • Technical Information

Specifications

USB interfaceUSB 2.0 HID (keyboard, mouse) and USB audio
Frequency response200 Hz – 12.5 kHz
Power consumption (recording)≈ 80 mA
Sampling rates11.025 kHz – 44.1 kHz, 16‑bit mono
Dimensions (L × W × T)215 mm × 38 mm × 18 mm
Weight≈ 105 g (3.20 oz)
SpeakerDynamic, 1.1 in (28 mm) diameter, 200 mW

Frequently asked questions

What type of USB connection does the SonicMic II use?

It uses a USB 2.0 HID interface for keyboard and mouse functions, plus USB audio.

How much power does the microphone draw while recording?

During stop/recording the microphone consumes about 80 mA.

What is the frequency response range of the SonicMic II?

The microphone covers a frequency range from 200 Hz to 12.5 kHz.

What is the weight of the SonicMic II microphone?

It weighs approximately 105 g (3.20 oz).
