User manual for the Grass Valley Model 2200 digital production switcher covering system overview, startup, configuration and operation.
This manual provides a complete guide to the Grass Valley Model 2200 Digital Production Switcher. It includes a system overview, hardware description, power supplies, video and key inputs/outputs, and detailed explanations of switcher concepts such as keying, transitions, and effects memory. The startup and configuration sections cover booting, software setup, user preferences, input mapping, and external interface configuration.
Later chapters describe switcher operations, layered mode, frame store functions, and advanced features like Super Black and keyframe editing. Appendices give additional technical details on video formats, keyframe timelines, and super‑black usage. Contact information for Grass Valley technical support is provided for further assistance.
| Software Release | 5.3071-0156-00 |
|---|
Support is available by phone at (800) 547‑8949 or by email at [email protected].

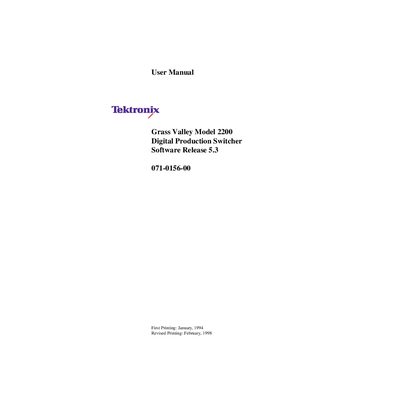

The manual lists Software Release 5.3071‑0156‑00 on the cover page.
