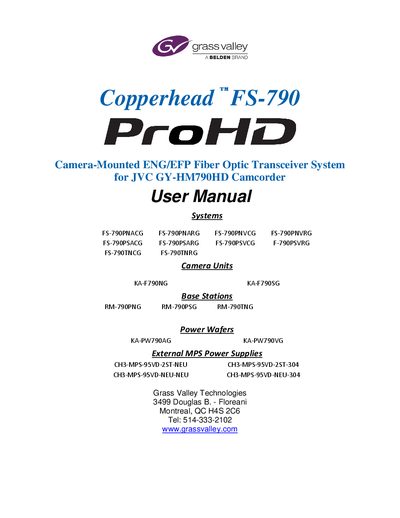

The Grass Valley FS-790 Copperhead ProHD Transceiver System User Manual provides installation, operation, and safety instructions for the fiber‑optic…
This user guide covers the Copperhead FS‑790 system, including the KA‑F790 camera unit, RM‑790 base station, power wafer options, and various connector types. It explains system concepts, component overviews, and detailed wiring diagrams for both tactical and SMPTE hybrid fiber connections.
Installation procedures, power options, intercom setup, and troubleshooting steps are described in separate chapters, with safety warnings and warranty information included. Appendices provide connector pin assignments, wiring suggestions, and a full specification sheet.
