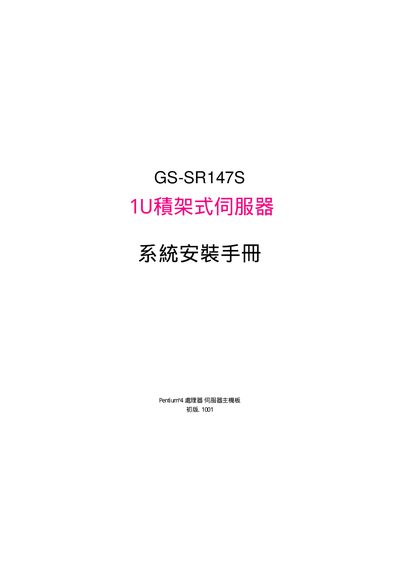

The Gigabyte GS‑SR147S 1U server motherboard user manual provides specifications, installation instructions, BIOS setup, and hardware configuration details.
This manual covers the Gigabyte GS‑SR147S 1U server motherboard, describing its layout, supported components, and how to install and configure the board in a rack‑mount server. It includes safety notices, part lists, and step‑by‑step installation guidance.
Key sections detail the CPU and memory specifications, PCI/PCI‑X expansion slots, SATA and USB connectors, BIOS features, IPMI remote management, power and thermal specifications, and LED indicator functions. The document also lists the full hardware specifications for quick reference. This manual is written in Chinese.
| Dimensions | 427.5 mm × 521 mm × 42.6 mm |
|---|---|
| Maximum Memory | 4 GB DDR |
| Memory Slots | 4 DDR DIMM sockets |
| SATA Ports | 2 SATA connectors |
| PCI‑X Slots | 2 PCI‑X slots (64/66 MHz) |
| Integrated Graphics | ATI Rage‑XL |
| Network Controller | Intel® 82541GI & 82547GI GbE |
| Super I/O Chip | ITE8712F |
The board can hold up to 4 GB of DDR memory across four DIMM slots.
Two SATA connectors are available for storage devices.
It includes Intel® 82541GI and 82547GI Gigabit Ethernet controllers.
