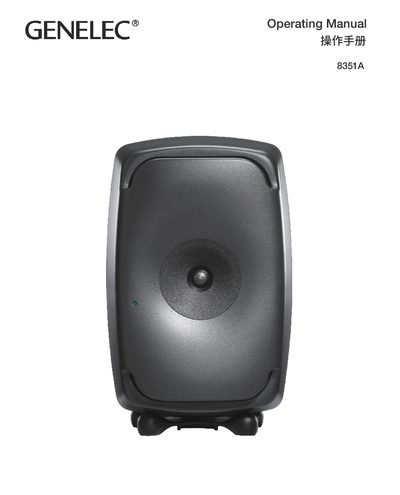

The manual explains setup, connections, operation, installation, safety and specifications for the Genelec 8351A SAM monitor speaker.
This operating manual provides step‑by‑step instructions for configuring the Genelec 8351A SAM monitor speaker, including connection to the GLM control network, input sensitivity adjustment, and use of the built‑in level control switches. It also covers recommended placement, acoustic tuning, and safety precautions for indoor use.
Detailed sections describe power, AES/EBU digital, analog and control‑network connections, installation guidelines, LED indicator meanings, maintenance procedures, warranty information and FCC compliance. Technical specifications such as frequency response, SPL, power output, dimensions and weight are listed for reference. This manual is written in Chinese.
| Frequency response (free field) | 32 Hz – 35 kHz (-6 dB) |
|---|---|
| Frequency response accuracy | 38 Hz – 20 kHz (±1.5 dB) |
| Maximum SPL (1 m) | ≥ 121 dB SPL |
| Analog input level range | -6 dBu to +25 dBu |
| Digital input (AES/EBU) connector | 1 XLR (10 kΩ) |
| Weight | 19 kg (42 lb) |
| Power consumption | 20 W idle, 290 W full output |
Turn the level‑control knob or use switches 6, 7 to reduce the level by –10 dB, –20 dB or –30 dB; the total attenuation range is 0 dB to –42 dB.
