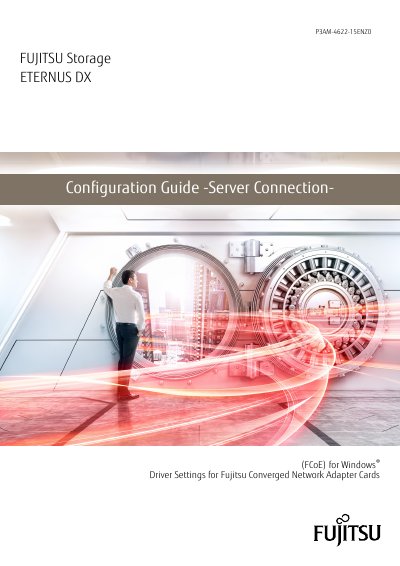

Fujitsu ETERNUS DX Configuration Guide -Server Connection- (FCoE) for Windows

This manual provides instructions for connecting Fujitsu ETERNUS DX storage systems to PRIMERGY and PRIMEQUEST servers running Windows via an FCoE interface.

Brand: Fujitsu
Category: Servers Computer
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.1 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BED7BF31DFF1774065566A93B18C623D
PDF: Fujitsu ETERNUS DX Configuration Guide -Server Connection- (FCoE) for Windows PDF

About this manual

This guide explains the operations required to connect an ETERNUS DX storage system to Fujitsu PRIMERGY, PRIMEQUEST 3000 series, PRIMEQUEST 2000 series, or PRIMEQUEST 1000 series servers running Windows via an FCoE interface. It details the setup procedures for installing and configuring Converged Network Adapter cards, including driver installation, version checking, and parameter configuration.

What's inside

Preface
Setup Procedure for PRIMERGY
Setup Procedure for PRIMEQUEST
Setting Up the Converged Network Adapter Cards
Installing the Driver
Checking the Driver Version
Setting Up the Driver Parameters
WWN Instance Management Table

Specifications

Supported Servers	PRIMERGY, PRIMEQUEST 3000 series, PRIMEQUEST 2000 series, PRIMEQUEST 1000 series
Interface	FCoE
OS	Windows
QueueDepth Max	1024
Recommended QueueDepth	1024 / (number of FCoE ports) / number of LUNs

Frequently asked questions

What information is required when an error has occurred in the system?

The physical address and World Wide Name (WWN) of the Converged Network Adapter card are required.

How do you check the driver version of the Converged Network Adapter card?

Use the Device Manager to go to [Storage controllers], open the [Properties] of the card, select the [Driver] tab, and check the [File version] of elxcna.sys.

What is the maximum number of simultaneous command executions per CA port for the ETERNUS DX?

The number is limited to 1024.
