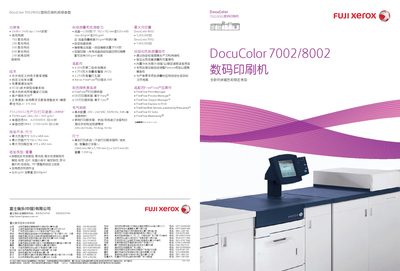

Technical specifications and features of the Fuji Xerox DocuColor 7002/8002 digital press.
The DocuColor 7002/8002 digital press delivers high‑speed, high‑quality printing with a resolution of 2400 × 2400 dpi and speeds of 70 ppm (A4, 60 g/m²) to 80 ppm (A4, 300 g/m²). It supports paper sizes from 182 × 182 mm up to 320 × 488 mm and handles a wide weight range of 60‑300 g/m² on 2,000‑page trays, with optional second‑feed modules increasing capacity to 8,000 pages.
Optional accessories include large‑capacity stackers, punchers, and FreeFlow® printing servers (EX, CX, Fiery‑based). The built‑in Automated Color Quality Suite with an integrated spectrophotometer provides automatic color calibration, Pantone matching, and advanced color analysis for consistent output across media. This manual is written in Chinese.
| Resolution | 2400 × 2400 dpi (1‑bit) |
|---|---|
| Printing speed (A4) | 70 ppm (7002) / 80 ppm (8002) |
| Maximum paper size | 320 × 488 mm |
| Minimum paper size | 182 × 182 mm |
| Supported paper weight | 60 – 300 g/m² |
| Paper tray capacity | 2,000 pages per tray |
| Maximum monthly print volume | 1,000,000 (7002) / 1,200,000 (8002) impressions |
| Electrical input | 200 – 240 VAC, 50/60 Hz, 30 A (single use) |
| Weight | 1,000 kg |
It prints at 2400 × 2400 dpi with 1‑bit depth.
The machine handles paper from 60 g/m² up to 300 g/m².
