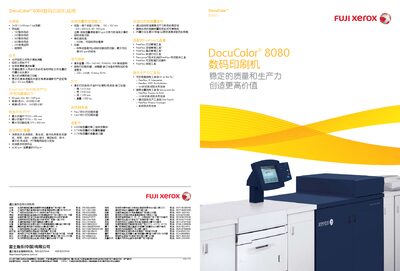

Technical specifications and optional features for the Fuji Xerox DocuColor 8080 digital press.
The DocuColor 8080 is a digital press offering 2400 × 2400 dpi resolution, up to 80 ppm (A4) speed, and a range of paper handling options. It includes built‑in spectrophotometer for automated colour calibration and supports various FreeFlow workflow toolkits.
The machine measures 1,414 mm H × 2,540 mm W × 1,105 mm D, weighs about 1 000 kg, and operates on 200‑240 VAC. Optional accessories such as high‑capacity paper modules, stackers, and binding units expand its productivity for diverse print jobs. This manual is written in Chinese.
| Print resolution | 2400 × 2400 dpi (1‑bit depth) |
|---|---|
| Paper tray capacity | 2,000 sheets per tray |
| Maximum paper size | 320 mm × 488 mm |
| Supported paper weight | 60 g/m² – 300 g/m² |
| Maximum print speed (black + colour) | 180 ppm |
| Dimensions (H × W × D) | 1,413 mm × 2,540 mm × 1,105 mm |
| Weight | 1,000 kg |
| Electrical input (basic) | 200‑240 VAC, 50/60 Hz, 30 A |
| Electrical input (with server) | 200‑240 V, 10 A, 50 Hz |
The DocuColor 8080 can print at 2400 × 2400 dpi with 1‑bit depth.
Each paper tray holds up to 2,000 sheets.
The basic configuration requires 200‑240 VAC, 50/60 Hz, 30 A.
It supports paper weights from 60 g/m² up to 300 g/m².
