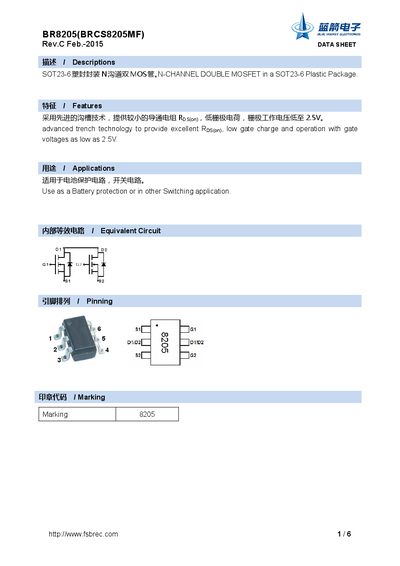

Data sheet for the FSBREC BR8205 (BRCS8205MF) N‑channel double MOSFET, covering electrical specs, package dimensions and thermal profiles.
The BR8205 (BRCS8205MF) is an N‑channel double MOSFET supplied in a SOT23‑6 plastic package. It uses advanced trench technology to achieve low on‑resistance and low gate charge, making it suitable for battery‑protection and other switching applications.
The document provides detailed electrical characteristics, absolute maximum ratings, marking instructions, package dimensions, reflow soldering temperature profile and packaging information for the device.
| Drain‑Source Voltage (VDS) | 20 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 6 A |
| Gate‑Source Voltage (VGS) | ±8.0 V |
| Input Capacitance (Ciss) | 1035 pF |
| Output Capacitance (Coss) | 320 pF |
| Turn‑on Delay Time (t d(on)) | 30 ns |
| Peak Reflow Temperature | 245 ± 5 °C |
The device can withstand up to 20 V drain‑source voltage.
It is supplied in a SOT23‑6 plastic package.
The recommended peak temperature is 245 ± 5 °C for about 5 ± 0.5 seconds.
