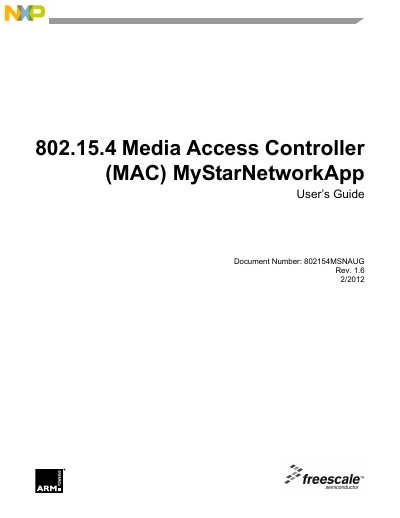

Guide for setting up, configuring and using the Freescale MyStarNetworkApp built on the 802.15.4 MAC.
The guide describes the hardware architecture of the MyStarNetworkApp, which runs on Freescale evaluation boards such as the 13213 Network Controller Board and the 1322x Sensor Node. It explains how to create a PAN, add up to four end‑devices, transfer data over UART, and monitor network activity via a serial console or the optional GUI.
Appendices cover the MC1322x functionality and provide a detailed user guide for the MyStarNetwork Demonstration GUI, including port settings, sensor data units, and network timeout configuration.
| Maximum End Devices | 4 |
|---|---|
| Default baud rate for GUI COM ports | 57600 bps |
| LED indicator function | Shows number of connected End Devices |
The application supports up to four End Devices.
The GUI uses a default baud rate of 57600 bps for virtual COM ports.
