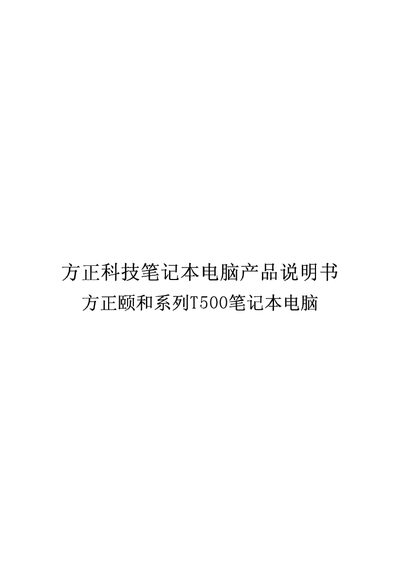

The Founder Yihe T500 laptop user manual provides safety guidelines, setup steps, BIOS configuration, driver installation, and troubleshooting advice.
This manual begins with safety precautions and important usage tips for the Founder Yihe T500 notebook, covering handling, environmental limits, and power‑supply requirements. It then describes the laptop’s components, unpacking, and basic operation such as keyboard, touchpad, display, and network functions.
Later sections guide users through BIOS settings, driver installation, battery maintenance, and common hardware or software problems. An appendix lists the full technical specifications of the Yihe T500 model. This manual is written in Chinese.
| CPU support | Intel Pentium M / Intel Celeron M |
|---|---|
| Display | 15‑inch TFT color LCD |
| Graphics controller | ATI M24 64 MB dedicated graphics |
| Keyboard | 87‑key keyboard |
| Hard drive | 2.5″ IDE, up to 100 GB, Ultra DMA 100/133 |
| Battery | Smart Li‑ion, approx. 2 hours runtime |
| Power adapter | Input 110‑240 V, Output 19 V 60 W |
| Weight | ≈2.5 kg (including battery) |
Let the computer run on battery power until it automatically shuts down due to low power.
The battery indicator light will show that charging is complete.
No, using a 110 V cord on a 220 V outlet or changing the voltage selector can cause injury or damage.
