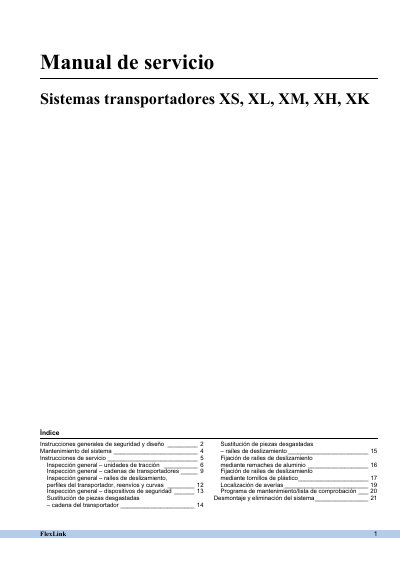

Service manual with safety, design, maintenance, inspection, and part‑replacement instructions for FlexLink XS, XL, XM, XH and XK conveyor systems.
This service manual provides general safety and design guidelines for FlexLink conveyor systems, covering risk‑minimising measures such as protective barriers, control devices and warning signage. It also details the correct handling of sliding clutches, chain tension, and protective covers to keep equipment and personnel safe.
The document includes a maintenance program, inspection procedures for traction units, chains, sliding rails and safety devices, as well as step‑by‑step instructions for adjusting the sliding clutch, lubricating the chain‑roller transmission, and disassembly and disposal of the system. This manual is written in Spanish.
| Maximum traction force (XS model) | 450 N |
|---|---|
| Lubrication interval for chain‑roller transmission | Every 50, 250, 500 h then every 500 h |
Inspect and lubricate it at 50, 250 and 500 operating hours, and then every 500 hours thereafter.
