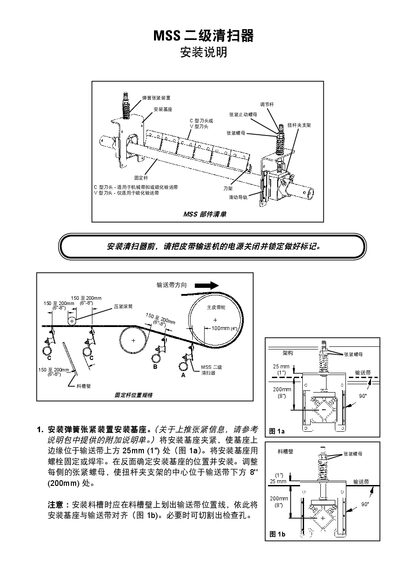

Installation guide for the Flexco MSS secondary sweeper, covering base mounting, tensioning, blade adjustment, and startup checks.
This guide explains how to install the MSS secondary sweeper on a conveyor system. It starts with mounting the installation base, securing it 25 mm above the belt, and aligning the base with the belt path. The document then details the installation of the fixed rod, tensioning nuts, and the spring‑tension device.
After mechanical assembly, the guide shows how to set the blade angle using the angle gauge, adjust blade tension by compressing the spring, and perform a trial run to verify cleaning performance. Safety notes and troubleshooting tips are included for vibration or insufficient cleaning. This manual is written in Chinese.
| Base edge height above conveyor | 25 mm (1") |
|---|---|
| Supported belt width | 200 mm (8") |
| Blade tension spring compression | 3 mm (1/8") |
| Adjustment rod sleeve exposed length | 38 mm (1.5") |
Place the blade in the middle of the conveyor, use the angle gauge to rotate the blade upward to the preset angle, and tighten the lock bolts.
Loosen the upper tension stop nuts, turn the tensioning nuts until the spring is compressed to the required length, then re‑tighten the stop nuts.
Rotate the adjustment rod and lower the tensioning nut to reduce the fixed rod height, then reset the blade angle.
