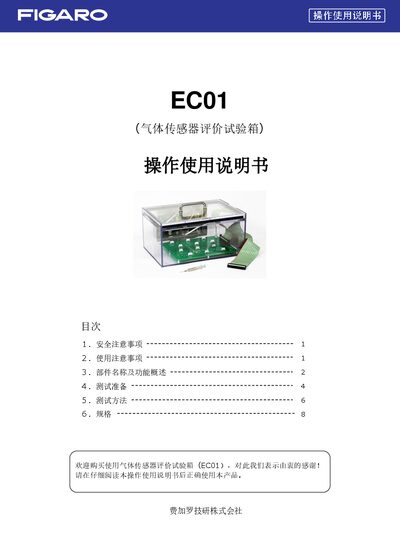

The Figaro EC01 Gas Sensor Evaluation Test Chamber User Manual provides safety guidelines, setup instructions, component overview, testing procedures, and…
This manual explains safe operation of the EC01 gas sensor evaluation test chamber, including warnings about combustible and toxic gases, the need for proper ventilation, and the lack of explosion‑proof design. It also details the required accessories and preparation steps before testing.
The document describes the chamber’s components, wiring connections, power‑voltage adjustment, and step‑by‑step testing methods, along with the chamber’s technical specifications such as power supply range, operating temperature, effective volume, and dimensions. This manual is written in Chinese.
| Power Supply | AC100V – 240V |
|---|---|
| Power Consumption | 2 W (fan on) |
| Operating Temperature Range | 0 °C – 50 °C |
| Effective Volume | 10.3 L |
| Dimensions (W×D×H) | 340 mm × 270 mm × 202 mm |
| Weight | ≈ 4 kg |
The chamber can be used between 0 °C and 50 °C.
Insert a screwdriver into the voltage adjustment hole on the control box and turn the knob to set the voltage between 4.00 V and 5.50 V.
Do not test gases with an LEL above 50 % concentration, ensure adequate ventilation, avoid fire sources, and consider using a gas alarm.
The chamber’s effective volume is 10.3 L.
