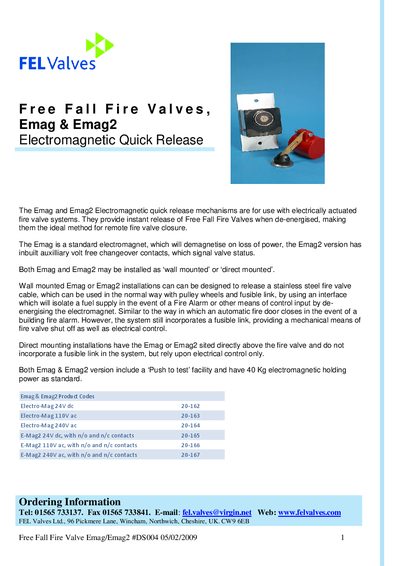

The FEL Valves Emag and Emag2 electromagnetic quick‑release mechanisms provide 40 kg holding force for fire valve shutdown, available in 24 V dc, 110 V ac…
The Emag and Emag2 are electromagnetic quick‑release devices used with electrically actuated fire valve systems. They release the valve instantly when de‑energised, allowing remote fire‑valve closure. Both models can be installed wall‑mounted, using a stainless‑steel release cable, or direct‑mounted above the valve for electrical‑only operation. The Emag2 adds auxiliary volt‑free change‑over contacts that signal valve status.
Technical data are provided for each product code. All versions deliver a holding force of 40 kg and consume 2 VA. Voltage options are 24 V dc, 110 V ac and 230 V ac. Ordering information and contact details for FEL Valves Ltd. are included.
| Emag Voltage | 110V ac |
|---|---|
| Emag Voltage | 230V ac |
| Emag2 Voltage | 110V ac |
| Emag2 Voltage | 230V ac |
Both the Emag and Emag2 provide a holding force of 40 kg.
The Emag can be installed either wall‑mounted, using a stainless‑steel release cable, or direct‑mounted above the fire valve for electrical‑only operation.
