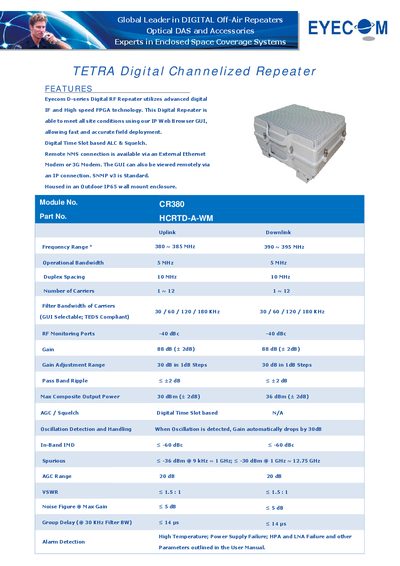

The Eyecom D-series CR380 HCRTD-A-WM digital RF repeater datasheet provides key specifications such as frequency ranges, gain, power output, and…
The CR380 HCRTD-A-WM is a digital RF repeater designed for enclosed‑space coverage systems. It supports TETRA digital channelized operation and can be managed remotely via an IP‑based web GUI, Ethernet or 3G modem, with SNMP v3 support.
Key specifications include uplink/downlink frequency ranges of 380‑385 MHz and 390‑395 MHz, 88 dB gain, up to 36 dBm output power, IP65 enclosure rating, and a rugged design rated for -20 °C to +55 °C operation.
| Operational Bandwidth | 5 MHz |
|---|---|
| Gain | 88 dB (± 2 dB) |
| Noise Figure @ Max Gain | ≤ 5 dB |
| VSWR | ≤ 1.5 : 1 |
| Power Supply Voltage | 90 – 265 V AC, 50 – 60 Hz |
| Power Consumption | ≤ 150 W |
| Operating Temperature | -20 °C to +55 °C |
| Dimensions (W×D×H) | 385 × 285 × 174 mm |
| Weight | ≤ 18 kg |
| MTBF | 86,000 hours |
| Enclosure Rating | IP65 |
It consumes up to 150 watts of power.
The enclosure is rated IP65 for dust and water protection.
