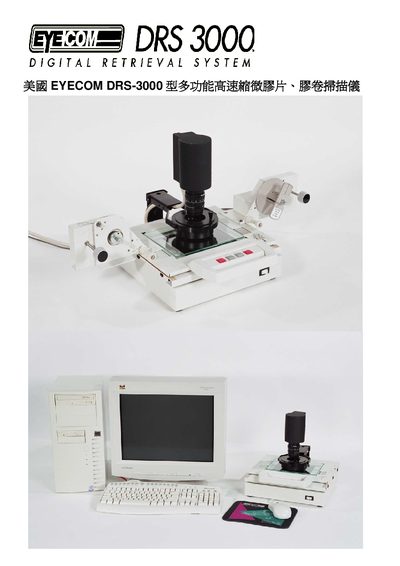

The EYECOM DRS-3000 scanner manual provides specifications, scanning features, and recommended PC configuration for high‑speed microfilm digitization.
The EYECOM DRS-3000 is a multi‑function high‑speed microfilm and film scanner equipped with a 3.2‑megapixel CCD sensor. It supports a variety of film formats, offers selectable zoom heads, and can capture each frame in less than one second.
The manual lists physical dimensions, weight, optical resolution, scanning speed, zoom ranges, and the minimum computer hardware required to operate the scanner efficiently. This manual is written in Chinese.
| Dimensions (H × W × D) | 21 cm × 62 cm × 38 cm |
|---|---|
| Supported film size | 105 × 148 mm flat and envelope film, window cards, 16 mm & 35 mm reels |
| Effective optical pixels | 3,170,000 pixels |
| Zoom range | 24–48×, 10–36×, 7–30× (alternating) |
| Recommended RAM | 512 MB DDR |
| Supported OS | Windows 2000 or XP |
It supports 105 × 148 mm flat and envelope film, window cards, and 16 mm or 35 mm manual or motorized reels, including positives, negatives, diazo, microbubble, silver‑salt master and copy films.
The scanner provides an effective optical resolution of 3,170,000 pixels (approximately 3.2 megapixels).
