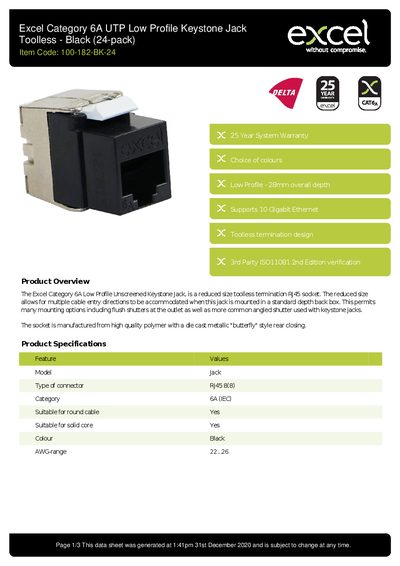

The Excel 100-182-BK-24 data sheet details specifications, dimensions, standards compliance, and accessories for the Category 6A UTP low‑profile toolless…
The Excel Category 6A UTP Low Profile Keystone Jack Toolless is a reduced‑size RJ45 socket designed for 10 Gigabit Ethernet. Its low‑profile 28 mm depth and toolless termination allow flexible mounting options in standard back boxes.
The data sheet lists key dimensions, material construction, contact plating, insertion life, temperature ranges, and the standards it meets, along with the included accessories such as nylon cable ties and wiring caps.
| Jack Type of connector | RJ45 |
|---|---|
| Category | 6A (IEC) |
| Depth | 28.3mm |
| Height | 21.5mm |
| Housing material | Die cast Zinc‑alloy & ABS |
| Contact plating | Nickel plated phosphor bronze alloy with 50 µin Gold |
| RJ45 Life Minimum | 750 insertions |
| Storage temperature | -40 to +70 °C |
| Operating temperature | -10 to +60 °C |
The jack has a depth of 28.3 mm.
The RJ45 contacts are rated for a minimum of 750 insertions.
It complies with RoHS, ISO/IEC 11801‑1:2017, EN 50173‑1:2011, and ANSI/TIA 568‑2.D.
