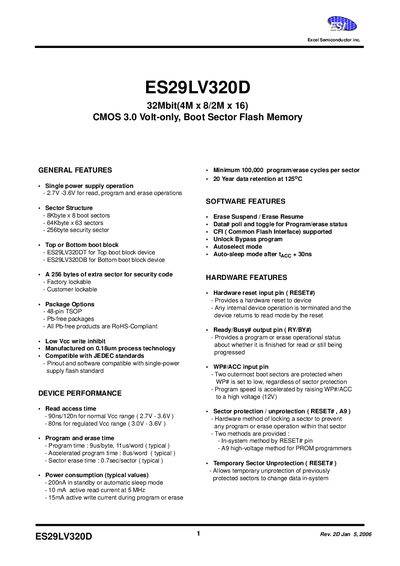

ES29LV320D is a 32Mbit (4M x 8/2M x 16) CMOS 3.0 Volt-only, Boot Sector Flash Memory manufactured by Excel Semiconductor. It features single power supply operation, sector structure, top or bottom boot block, and an extra security code sector.
The ES29LV320D is a 32‑Mbit CMOS flash memory device that operates at a single 3.0 V power supply (2.7 V‑3.6 V range). It is offered in a 48‑pin TSOP package and is RoHS‑compliant. The device supports both byte (4M × 8) and word (2M × 16) configurations, with eight boot sectors and sixty‑three main sectors, plus a 256‑byte security sector.
Key features include fast access times (80 ns‑120 ns), low standby current (200 nA), and robust endurance (minimum 100 000 program/erase cycles per sector with 20‑year data retention at 125 °C). The datasheet details hardware pins, bus operations, power‑down modes, programming algorithms, and sector protection mechanisms.
| Memory capacity | 32 Mbit (4M × 8 bytes or 2M × 16 bits) |
|---|---|
| Operating voltage | 2.7 V – 3.6 V |
| Access time | 80 ns (regulated), 90 ns / 120 ns (normal range) |
| Program time (typical) | 9 µs per byte, 11 µs per word |
| Sector erase time (typical) | 0.7 s per sector |
| Endurance | ≥ 100 000 program/erase cycles per sector |
| Data retention | 20 years at 125 °C |
| Package | 48‑pin TSOP, Pb‑free, RoHS‑compliant |
The device operates from 2.7 V to 3.6 V.
Each sector is guaranteed for at least 100 000 program/erase cycles.
When supplied with a regulated 3.0 V‑3.6 V, the access time can be as fast as 80 ns.
It is available in a 48‑pin TSOP package that is Pb‑free and RoHS‑compliant.
