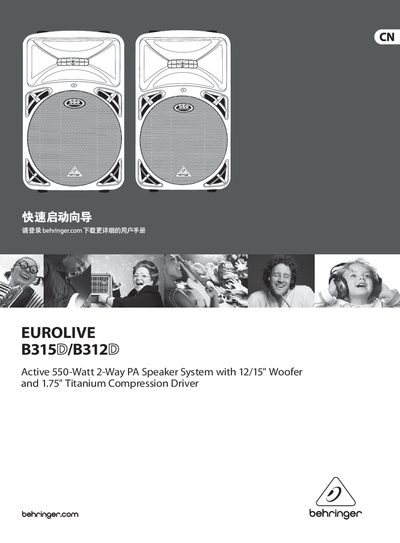

Quick start guide for the EUROLIVE B315D/B312D active PA speaker system, covering connections, controls, and key specifications.
This guide walks you through the basic setup of the EUROLIVE B315D/B312D active PA speakers. It explains how to connect power, audio inputs (¼" TRS or XLR), and link multiple speakers together, as well as how to adjust the low and high equalizer knobs and level control.
The document also lists the main technical specifications, such as amplifier power output, frequency response, SPL rating, power consumption, dimensions, and supported power‑supply voltages for different regions.
| Low‑frequency RMS Power | 280 W @ 8 Ω |
|---|---|
| High‑frequency RMS Power | 65 W @ 8 Ω |
| Frequency Response | 50 Hz ~ 18 kHz |
| Maximum SPL | 126 dB SPL @ 1 m |
| Power Consumption | Maximum 600 W |
| Dimensions (H×W×D) B315D | 28.8 x 18.5 x 16.7 in |
| Weight B315D | 57.8 lbs / 26.2 kg |
| Input Sensitivity | -40 dBu ~ +4 dBu |
| Input Impedance | 20 kΩ |
| Power Supply Voltage (US/Canada) | 120 V~, 60 Hz |
Use the ¼" TRS input for unbalanced signals or the XLR input for balanced signals.
The CLIP LED lights when the input signal is overloaded, prompting you to lower the level.
Replace the fuse with a new one of the same rating as indicated in the fuse compartment.
The speaker works with US/Canada 120 V 60 Hz, UK/Australia 240 V 50 Hz, Europe 230 V 50 Hz, and Japan 100 V 50‑60 Hz.
