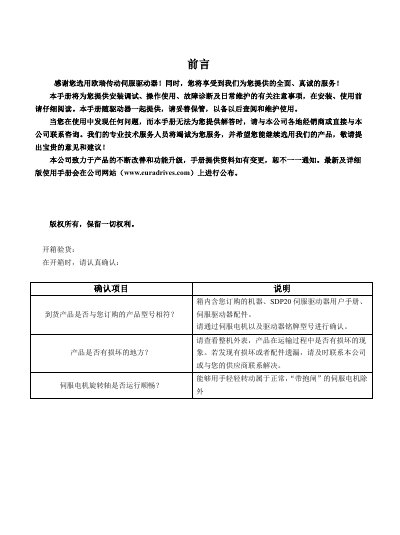

Euradrives SDP20 Servo Drive User Manual

This manual provides installation, operation, troubleshooting, and maintenance instructions for the Euradrives SDP20 servo drive.

Brand: EURA DRIVES
Document type: User Manual
Language: Chinese
Pages: 229
File format: PDF
File size: 5.7 MB
Published: 10 October, 2026
Updated: 10 October, 2026
MD5 checksum: 8AA56A4A4A2C69E088A66EC7A0BFF5F5
PDF: Euradrives SDP20 Servo Drive User Manual PDF

About this manual

The Euradrives SDP20 servo drive is designed to control servo motors within a servo system. This user manual covers safety precautions, product specifications, and detailed procedures for installation and wiring of both the drive and motor.

The guide explains how to operate the front panel, set user parameters for various modes (position, velocity, torque), perform gain adjustments, and handle faults or alarms. It also includes information on communication protocols like MODBUS. This manual is written in Chinese.

What's inside

Safety Precautions
Product Specifications
Installation Environment
Main Circuit Wiring
Motor Connection
Panel Operation
User Parameters
Running Modes
Gain Adjustment
Communication

Specifications

Standards Compliance	IEC/EN 61800 -5-1：2007, IEC/EN 61800 -3：2004/+A1 ：2012
Input Voltage (Example)	380V

Frequently asked questions

What should be confirmed upon unboxing?

Confirm the product model matches the order, check for damage, and verify the servo motor shaft runs smoothly.

What is the function of the 'NC' symbol?

The symbol NC indicates that a connection is prohibited.

Download PDF (5.7 MB)
