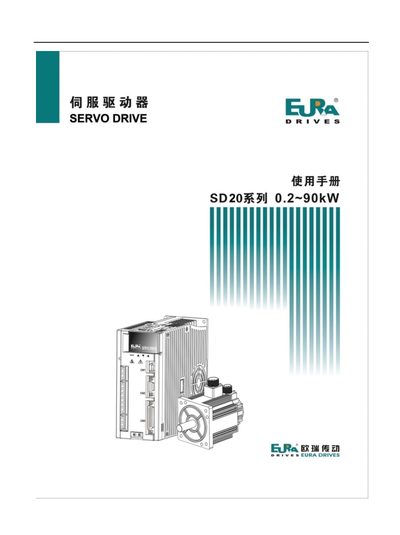

This manual provides installation, operation, troubleshooting, and maintenance instructions for the Euradrives SD20 servo drive.
The Euradrives SD20 is a servo drive designed to control servo motors within a servo system. This user manual covers the complete lifecycle of the device, from initial unboxing and safety checks to installation, wiring, and commissioning.
The document details various operating modes including position, velocity, torque, and mixed modes, along with advanced features such as built-in PLC logic, high-speed counters, and vibration suppression. It also provides comprehensive guidance on parameter setting via the front panel, troubleshooting common faults, and routine maintenance procedures. This manual is written in Chinese.
| Input Voltage | AC3PH220V50/60Hz |
|---|---|
| Output Current | 4.5A |
| Output Voltage Range | 0～220V |
The drive requires an AC three-phase input of 220V at 50/60Hz.
The system consists of the servo drive, servo motor, instruction controller, and peripheral devices.
You should confirm the model matches your order, check for external damage during transport, and verify that the motor shaft rotates smoothly.
