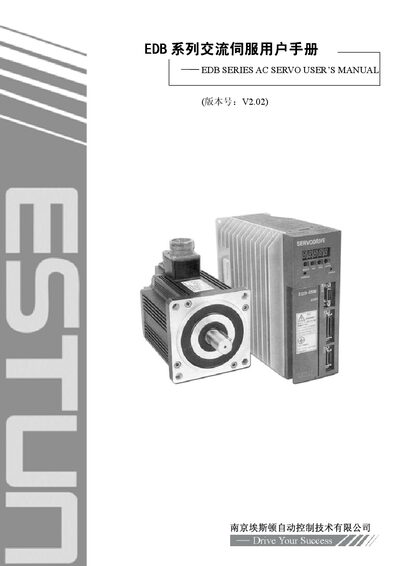

This manual provides installation, wiring, safety, and parameter‑setting instructions for ESTUN EDB series AC servo drives.
The ESTUN EDB series AC servo drive user manual explains the safety precautions and pre‑installation checks required before powering the device. It emphasizes using a 220 V AC supply, proper grounding, and maintaining minimum clearances to avoid damage.
The document details the wiring connections, signal interfaces, parameter configuration, and communication functions. It also lists technical specifications, installation dimensions, and troubleshooting information for the servo drive and its associated motor. This manual is written in Chinese.
| Rated output power | 0.8 kW |
|---|---|
| Input power supply | Three‑phase AC 220 V ±10 % – 15 % |
| Control method | Three‑phase full‑wave rectifier 1GBT PWM |
| Operating temperature range | 0 °C ~ 55 °C / –20 °C ~ 85 °C (non‑condensing) |
| Ground resistance | < 100 Ω |
Use a three‑phase AC supply of 220 V; do not connect the drive to a 222 V source.
Connect a single ground with a resistance of less than 100 Ω.
Maintain at least 10 mm horizontally and 50 mm vertically between the drive and other devices.
