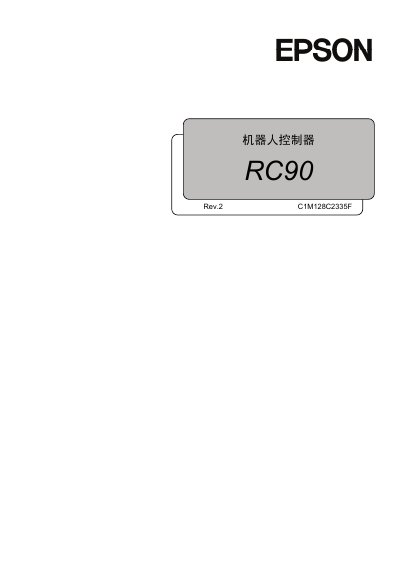

The Epson RC90 Rev.2 robot controller user manual provides safety instructions, specifications, setup, operation modes, and maintenance guidance.
This manual explains how to safely install, configure, and operate the Epson RC90 Rev.2 robot controller. It includes warranty information, safety warnings, and recommended handling procedures.
The document details the controller's hardware specifications, supported software, connection interfaces (USB, LAN, TP), and provides step‑by‑step setup, operation mode selection, and troubleshooting procedures, along with a parts list for maintenance. This manual is written in Japanese.
| CPU | 32-bit microprocessor |
|---|---|
| Control axes | 4 |
| Standard I/O inputs | 24 points |
| Power supply voltage | AC 200‑240 V |
| Maximum power capacity | 2.5 kVA |
| Memory capacity | 4 MB |
The warranty period is one year from the date of delivery to the customer.
