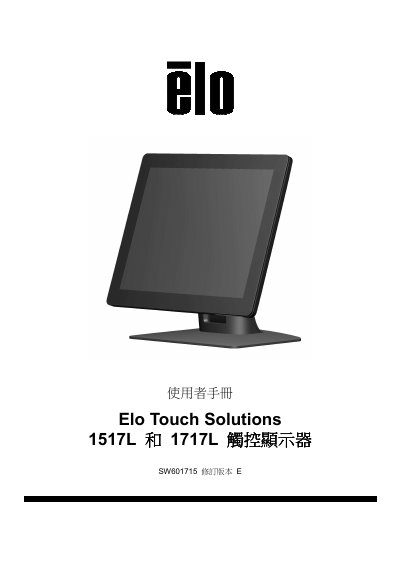

The Elo 1517L and 1717L touch display user manual provides installation, assembly, operation, safety, and technical support information.
This manual describes the Elo 1517L and 1717L touch‑screen displays, which feature a 162‑million‑color active‑matrix TFT LCD panel with LED backlight. It explains how to set up the displays, connect them to a PC, and maintain them safely.
The document includes chapters on introduction, installation, assembly, operation, technical support, safety and maintenance, regulatory information, and warranty details, as well as specifications for power, environmental limits, and mounting options. This manual is written in Chinese.
| LCD panel type | 162 million‑color active‑matrix TFT LCD |
|---|---|
| Backlight | LED |
| Input voltage (AC) | 100‑240 VAC |
| Input voltage (DC) | 12 VDC ±5 % |
| 1517L power draw (AC) | 0.3 A at 100‑240 VAC |
| 1717L power draw (AC) | 0.5 A at 100‑240 VAC |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| VESA mount | 75 mm × 75 mm, M4 screws |
The package contains a VGA cable, a USB cable, a North American power cord, and a European power cord.
Drivers can be downloaded from Elo’s support site at www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx.
The displays are certified for CE, FCC, UL, C‑Tick, CUL, CCC, VCCI, KC, CoC, and BSMI, among others.
