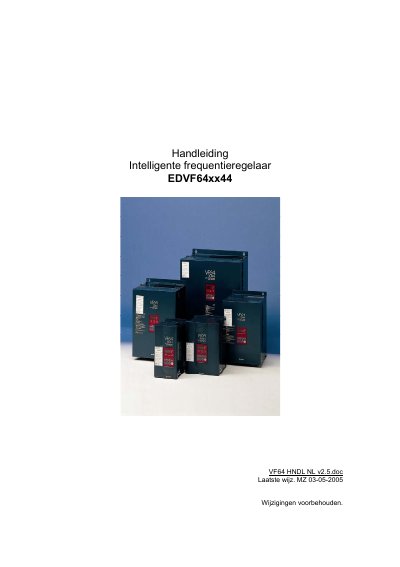

User manual for the Electro Drive EDVF64-xx44 variable frequency drive, covering installation, operation, parameter programming, fault codes, and technical…
This document serves as a user guide for the Electro Drive EDVF64-xx44 intelligent variable frequency drive (VFD). It provides instructions on installing the unit, connecting the motor, and configuring parameters via the LED console or external signals. The manual explains how to operate the drive in various modes, including auto-tuning and different control strategies like V/f and vector control. This manual is written in Dutch.
| Input Voltage | 3x 380-460V ±10% |
|---|---|
| Frequency Range | 0 – 400Hz |
| Switching Frequency | 4-15kHz |
| Efficiency | >95% |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0-50°C |
| Digital Inputs | 6 programmable |
| Digital Outputs | 4 programmable |
The drive is designed to be powered by a three-phase AC network with voltages between 380V and 460V.
The unit utilizes forced air cooling to maintain proper operating temperatures.
The switching frequency ranges from 4kHz to 15kHz across the entire frequency range.
There are 6 freely programmable digital inputs available on the standard model.
