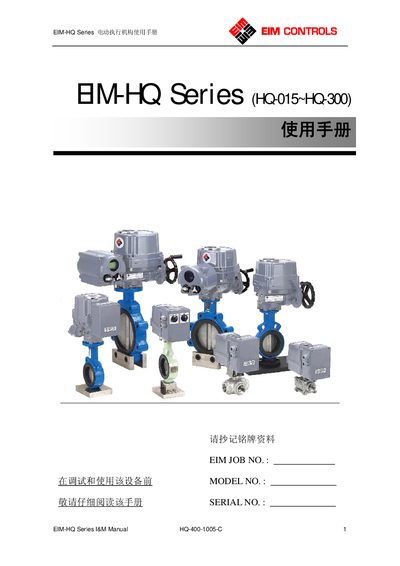

The manual provides overview, installation, wiring, operation, and maintenance instructions for EIM HQ series electric actuators.
This document describes the EIM HQ series electric actuators (model range HQ‑015 to HQ‑300). It covers product overview, mechanical assembly with valves, external structure, electrical wiring diagrams, power supply requirements, and operating modes.
Detailed sections guide users through manual operation, mechanical limit adjustment, travel‑switch and torque‑switch settings, reverse‑rotation configuration, lubrication, indicator adjustment, routine maintenance, storage, and troubleshooting. This manual is written in Chinese.
| 防护等级 | IP67, NEMA 4 & 6 |
|---|---|
| 外壳材料 | 高强度铝合金及防腐涂层 |
| 电机电源 | 110/220VAC 1PH 50/60Hz, 380/440VAC 3Ph 50/60Hz |
| 工作制式 | EC 34 S2 (25~30%) |
| 行程角度 | 90°±10° |
Manually move the actuator to the closed position, loosen the limit cam screw with a 4 mm hex key, turn the cam clockwise until a “click” is heard, then tighten the screw; repeat for the open position in the opposite direction.
Swap the wiring of terminals 9 and 10, and also swap terminals 11 and 12; for PCU modules also exchange the P1 and P3 inputs, then recalibrate if needed.
