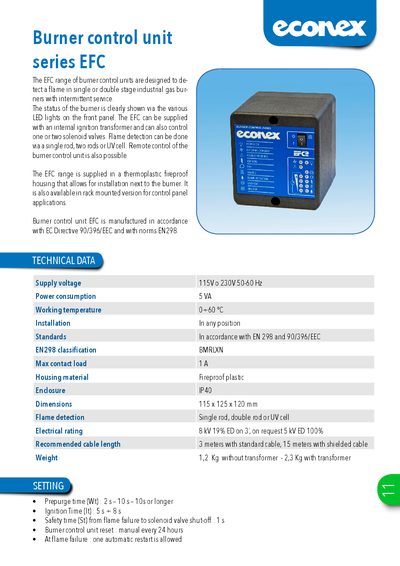

Econex EFC Burner Control Unit Product Leaflet

Technical data and wiring information for the Econex EFC series burner control units designed for industrial gas burners.

Brand: Econex
Document type: Product Leaflet
Language: English
Pages: 4
File format: PDF
File size: 1.5 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: AA4FEBFE6A2050A1E43D7217A303945D
PDF: Econex EFC Burner Control Unit Product Leaflet PDF

About this manual

The Econex EFC range of burner control units is designed to detect flames in single or double stage industrial gas burners with intermittent service. These units feature a thermoplastic fireproof housing suitable for installation next to the burner, and are also available in rack-mounted versions for control panel applications.

What's inside

Technical Data
Models and Types
Wiring Diagrams
Working Cycle (Single Valve)
Working Cycle (Double Valve)

Specifications

Supply voltage	115V or 230V 50-60 Hz
Power consumption	5 VA
Working temperature	0÷60 °C
Max contact load	1 A
Enclosure rating	IP40
Dimensions	115 x 125 x 120 mm
Housing material	Fireproof plastic

Frequently asked questions

What flame detection methods are supported?

Flame detection can be done via a single rod, two rods or UV cell.

How many solenoid valves can the unit control?

The EFC can control one or two solenoid valves.
