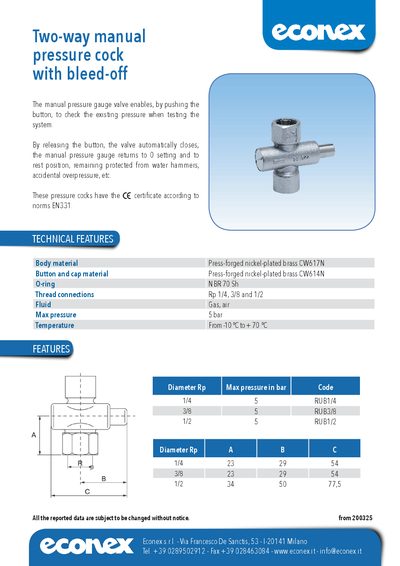

The Econex manual pressure gauge valve (RUB series) is a two‑way manual cock with bleed‑off, rated up to 5 bar and operating from –10 °C to +70 °C.
The Econex manual pressure gauge valve allows the user to check system pressure by pushing the button; releasing the button automatically closes the valve and returns the gauge to zero, protecting the device from water hammers and accidental over‑pressure.
The valve is offered in three sizes (RUB1/4, RUB3/8, RUB1/2) with a maximum pressure of 5 bar, temperature range –10 °C to +70 °C, press‑forged nickel‑plated brass body, NBR 70 O‑ring, and thread connections for 1/4", 3/8" and 1/2" sizes. It is suitable for gas and air applications.
| Maximum pressure | 5 bar |
|---|---|
| Operating temperature | -10 °C to +70 °C |
| Body material | Press‑forged nickel‑plated brass CW617N |
| O‑ring material | NBR 70 |
| Thread connections | Rp 1/4, 3/8 and 1/2 |
| Compatible fluids | Gas, air |
Press the button to display the current pressure; releasing the button closes the valve and returns the gauge to zero.
The valve automatically closes and the gauge returns to the 0 setting and rest position.
The valve is rated for a maximum pressure of 5 bar.
It can operate from –10 °C up to +70 °C.
