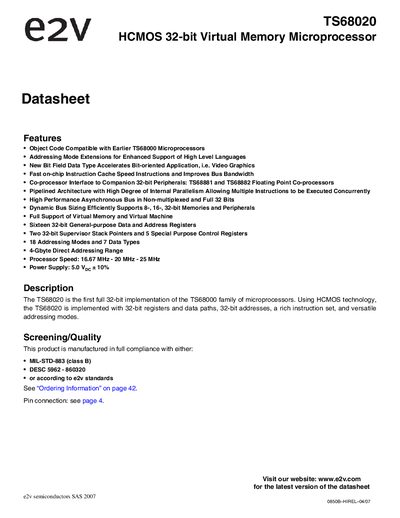

The e2v TS68020 is a 32‑bit HCMOS microprocessor with virtual memory, offering up to 25 MHz operation, 114‑pin PGA or 132‑pin CQFP packages, and detailed…
The TS68020 is a high‑performance 32‑bit microprocessor built with HCMOS technology. It provides a rich instruction set, 4‑Gbyte direct addressing, virtual‑memory support, and a co‑processor interface for 32‑bit floating‑point units. The device is offered in two hermetically sealed ceramic packages: a 114‑pin PGA and a 132‑pin CQFP.
The datasheet lists the electrical characteristics (supply voltage 5 V ± 10 %, clock frequencies 16.67‑25 MHz), thermal limits (operating temperature –55 °C to +125 °C, thermal resistance values), mechanical dimensions, and compliance with MIL‑STD‑883. Ordering information, handling precautions, and revision history are also included.
| Processor speed | 16.67 MHz – 20 MHz – 25 MHz |
|---|---|
| Supply voltage | 5.0 V ± 10 % |
| Operating temperature range | -55 °C to +125 °C |
The TS68020 can operate at 16.67 MHz, 20 MHz, or 25 MHz.
A 5.0 V DC supply with a tolerance of ±10 % is specified.
The device is rated for operation from –55 °C up to +125 °C.
