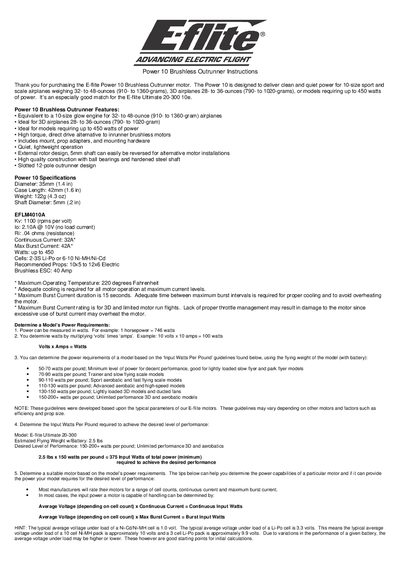

The E-flite Power 10 Brushless Outrunner Motor User Manual provides installation, operation, specifications, and safety instructions.
The Power 10 Brushless Outrunner motor delivers clean, quiet power for sport and 3‑D RC airplanes weighing up to 48 oz and up to 450 W of output. It features a high‑torque, direct‑drive external‑rotor design with a 5 mm shaft that can be reversed for alternative installations.
The manual covers motor specifications, power‑requirement calculations, recommended batteries and props, detailed mounting and wiring instructions, shaft‑reversal steps, safety precautions, warranty information, and contact details for service and repairs.
| Diameter | 35 mm (1.4 in) |
|---|---|
| Case Length | 42 mm (1.6 in) |
| Weight | 122 g (4.3 oz) |
| Shaft Diameter | 5 mm (0.2 in) |
| Kv | 1100 rpm/V |
| No‑load Current (Io) | 2.10 A @ 10 V |
| Resistance (Ri) | 0.04 Ω |
| Continuous Current | 32 A |
| Maximum Burst Current | 42 A |
| Maximum Power | up to 450 W |
| Recommended Cells | 2‑3S Li‑Po or 6‑10 Ni‑MH/Ni‑Cd |
| Recommended Props | 10×5 to 12×6 |
The Power 10 motor is rated for a continuous current of 32 A.
Reverse the shaft direction by swapping any two of the three motor wires before connecting to the ESC.
A 3‑cell Li‑Po pack (3S) is recommended for achieving the maximum burst power of about 441 W.
Keep clear of the rotating propeller and ensure proper cooling to avoid overheating.
