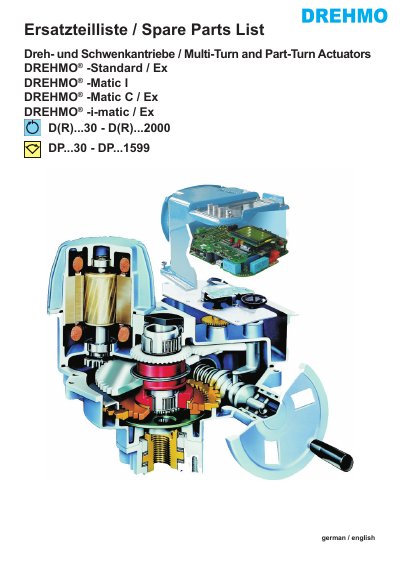

DREHMO Multi-Turn and Part-Turn Actuators Spare Parts List

About this manual

The document serves as a comprehensive spare parts catalog for various DREHMO actuator series, specifically the Standard, Matic I, Matic C, i-matic, and explosion-proof models. It details part numbers and descriptions for mechanical assemblies such as gears, housings, shafts, and mounting components. This manual is written in German.

What's inside

• Mechanical Design
• Output drives
• Electrical connection technology
• Limit switch lid / Control Unit
• Sensors
• Vandal protection
• Motor

Frequently asked questions

What information is required on the serial number plate to place a spare parts order?

You must provide the six-digit serial number found on the actuator nameplate.

Is it necessary to list every individual component when ordering a complete sub-assembly?

No, listing all individual components is not necessary if ordering a complete sub-assembly.

Does the seal kit for one unit include seals that may not be required for a specific serial number?

Yes, the kit might contain seals that are not required for the relevant serial number.
