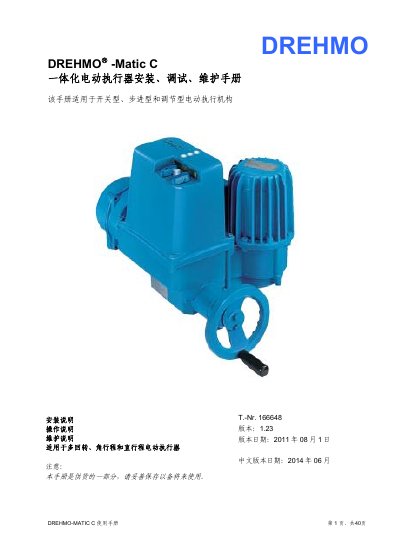

This manual covers installation, commissioning, and maintenance for DREHMO MATIC C integrated electric actuators, including switch, step, and regulating types.
This manual provides instructions for the installation, commissioning, and maintenance of DREHMO MATIC C integrated electric actuators. It applies to multi-turn, angular, and linear actuators and includes safety guidelines, technical data, and operational procedures. This manual is written in Chinese.
| Protection Class | IP67 or IP68 |
|---|---|
| Operating Temperature (Switch) | -25°C to +70°C |
| Operating Temperature (Regulating) | -25°C to +60°C |
| Max Altitude | < 2000 meters |
| Max Axial Force (DMC30/DMC59) | 30/40 kN |
This manual applies to switch, step, and regulating electric actuators, including multi-turn, angular, and linear types.
Electrical installation work must be performed by an electrician or under the supervision of a qualified engineer according to local regulations.
The maximum axial force for DMC30/DMC59 models is 30 kN for F07 and 40 kN for F10.
