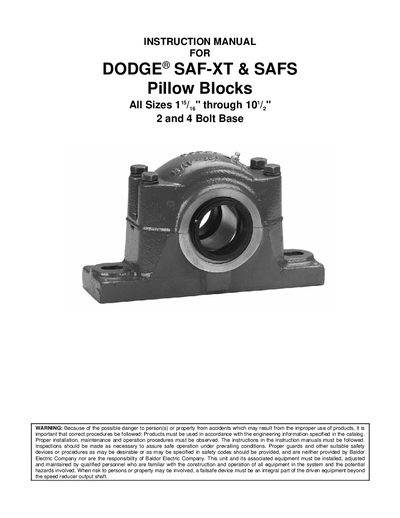

Installation, maintenance and operation guide for Dodge SAF‑XT and SAFS pillow blocks covering all sizes from 1‑1/16" to 10‑1/2".
This manual provides step‑by‑step instructions for inspecting, installing, and maintaining Dodge SAF‑XT and SAFS pillow blocks. It includes safety warnings, torque specifications, clearance measurements, and lubrication procedures for all listed sizes.
The document also lists replacement part numbers, recommended greasing intervals, maximum operating speeds, and allowable misalignment values, helping technicians ensure reliable long‑term service of the bearing assemblies.
| Recommended torque values (ft‑lb) | see Table 2 |
|---|---|
| Maximum RPM for 115/16" bearing | 4500 rpm |
| Allowable misalignment for 115/16" | 1º08´ |
| Regreasing interval for 115/16" at 250 rpm | 8 months |
The manual provides recommended torque values in Table 2, listed in foot‑pounds for each size.
The maximum permissible speed for a 115/16" bearing is 4 500 rpm.
Regreasing intervals are given in Table 6 and range from 1 month for the smallest sizes at high speed to 8 months for 115/16" at 250 rpm.
Before installing, turn off and lock out or tag the power source to prevent unexpected drive start‑up.
